Smoke Detection & Fire Alarm System
The Fire Detection & Alarm System is designed to help in identifying fire, heat or smoke and to alert immediately the building's occupants for evacuation. There are two types of Fire Alarm Systems, Addressable Fire Alarm System and Conventional Fire Alarm System.
Types of Fire Alarm System

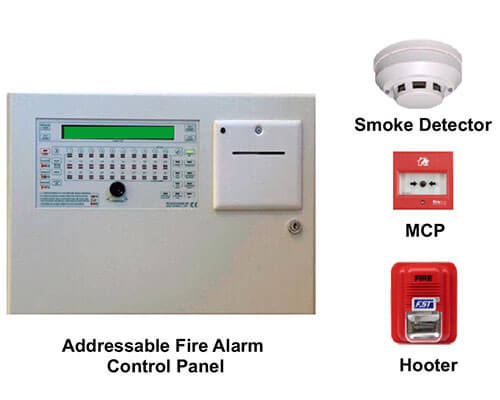

Addressable Fire Alarm System
In an Addressable Fire Alarm System, all the Smoke Detectors and other Devices are given an individual address (name) which are identified by the Fire Alarm Panel. This helps in recognizing the exact location of ignition of fire/smoke even in a multi-storied building hence, reducing the time required to locate the fire/smoke.
  • Higher degree of programming flexibility
  • Self configurable via panel keyboard
  • Can connect up to 64-312 addressable devices per loop
  • Single Point Detection
  • Day/night function
jayraj

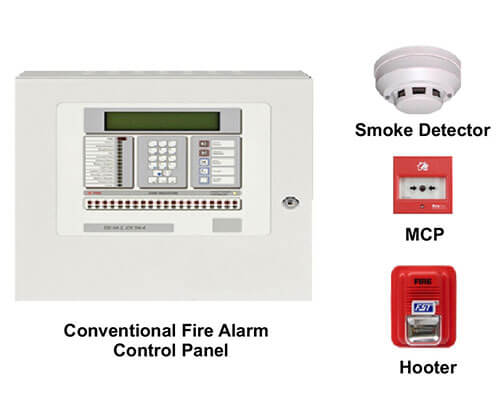

Conventional Fire Alarm System
The Conventional Fire Alarm System can be divided into multiple zones, each having up to 20 Smoke Detectors. At the time of fire/smoke, the Fire Alarm Control Panel identifies the affected zone.
  • Has small number of circuits connected to the device
  • Each circuit connected to the alarm covers a zone
  • LED lights indicate the activated zone in a building
  • Can detect the affected zone not the particular device
  • Can connect up to 20 devices in a zone
jayraj
jayraj

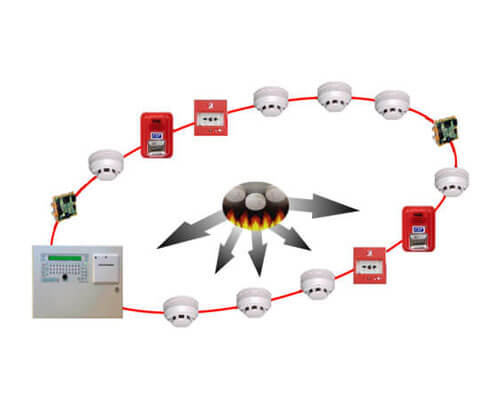

System Design - Addressable Fire Alarm System
jayraj

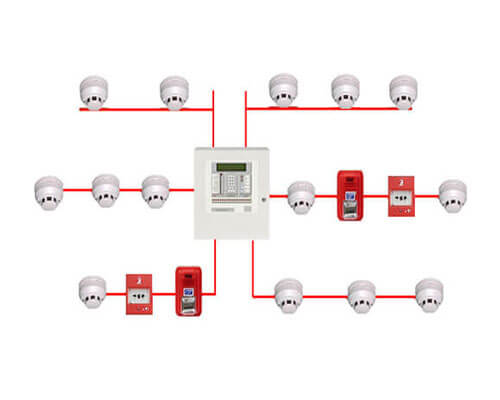

System Design - Conventional Fire Alarm System
Fire Hydrant System
This is a galvanised pipe system which runs vertically inside of the building. It will have a main entry point located outside of the building, usually at ground level and in a metal housing with glazed door. The purpose of these risers is to allow the Fire & rescue services to connect lay flat hose to it and pump up the required water to the necessary floor to fight a fire.

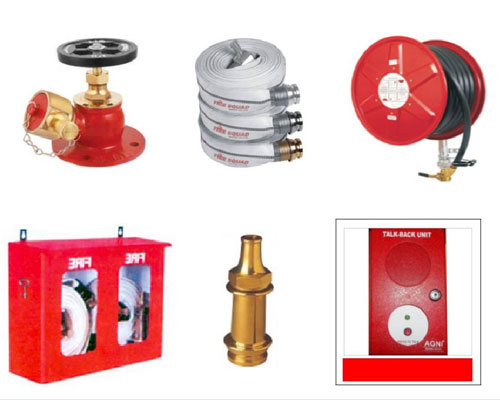

Prime Components
  • Fire Hydrant Pumps
  • Pipe Line
  • Panel For Pumps
  • Gate Valves
  • Butterfly Valves
  • Non Return Valves
  • Hydrant Valves
  • Air Release Valves
  • Pressure Gauges
  • Pressure Switches
  • Y Strainers
  • Hose Reel with 30 / 36 / 40 Mtr. Hose
  • RRL Hose and Nozzles
  • Hose Cabinets & Shutters
jayraj
jayraj

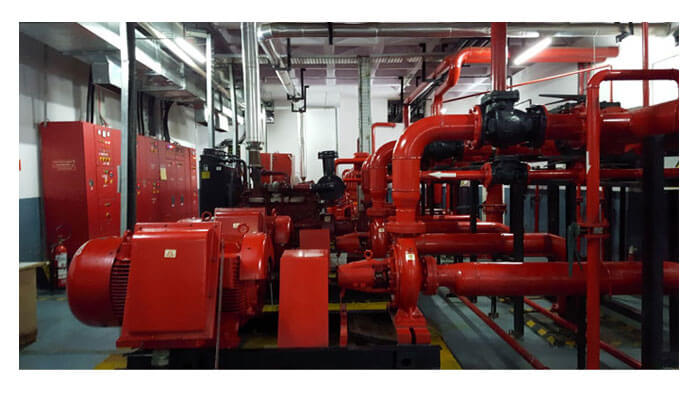

Fire Hydrant Pump Room
jayraj

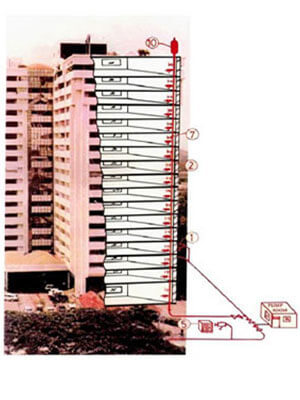

Fire Hydrant & Wet Riser System

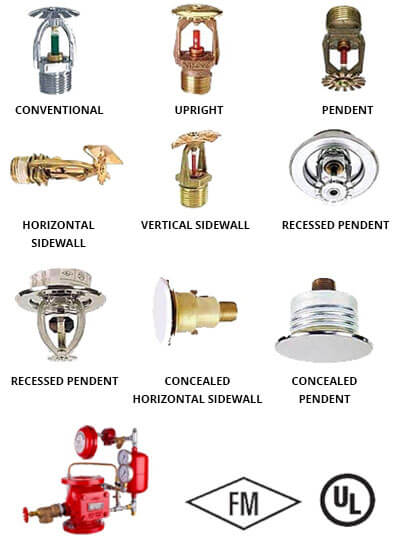

Fire Sprinkler System
A Fire Sprinkler System consists of a water supply system, providing adequate pressure and flow rate to a water distribution piping system, onto which fire sprinklers are connected.
Components (Sprinkler)
  • Sufficient large water reservoir
  • Sprinkler Pump
  • Sprinkler Bulb / Head
  • SS Flexible Hose (Braided / UnBraided)
  • Reducers
  • Branch Pipe
  • Valves & Switches
Areas of Application
  • High Rise Buildings
  • Cable Tunnels
  • Metro Stations
  • CNC Centres
  • Gas Turbines
  • Marines
  • Museums/Libraries
jayraj

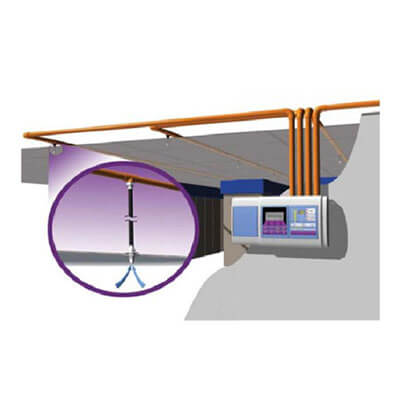

Pre-Action Fire Sprinkler System
Pre-action fire sprinkler systems employ the basic concept of a dry pipe system in that water is not normally contained within the pipes. The difference, however, is that water is held from piping by an electrically operated valve, known as a pre-action valve. Valve operation is controlled by independent flame, heat, or smoke detection.

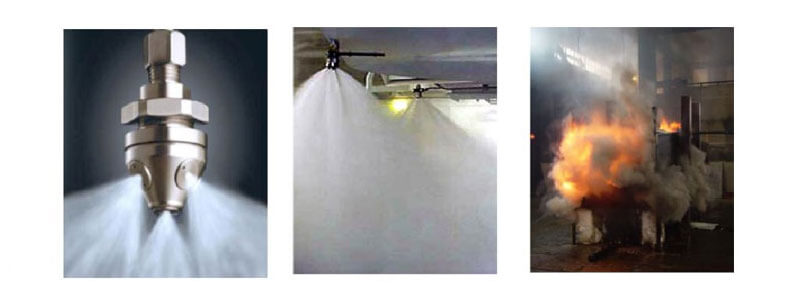

Water Mist System
The Water Mist Fire Suppression System converts pure water into fine mist at a pressure of 80 to 200 bars. As a result of water being atomized at high pressure, the surface area available for cooling is considerably greater than that of conventional low pressure system hence, extracting heat, far more rapidly from fire.
Water Mist System
  • Heat extraction from the fire and fuel
  • Oxygen reduction by steam smothering
  • Blocking of radiant heat transfer
  • Cooling of combustion gases
jayraj
Water Mist Fire Suppression
Deluge System
Prime Components
Medium Velocity Water Spray System
Medium Velocity Water Spray System is installed to control the burning and to provide cooling and exposure protection to such risks where extinguishment is always not possible or even desirable e.g. fires involving flammable fluids having flash points below 650 C (1500 F). These 600 C systems are also used sometimes for power station applications in coal conveyors, cable galleries etc.
  • A Deluge Valve
  • Horizontal Storage Vessels - LPG Bullets
  • Vertical Storage Vessels - Benzene, Xylene, Toluene Tanks
  • Spherical Storage Vessels - LPG Bullets & Spheres

System Components
  • Deluge Valve
  • Isolation Valve
  • Quartzoid Bulb Detectors
  • Open Spray Nozzle
jayraj

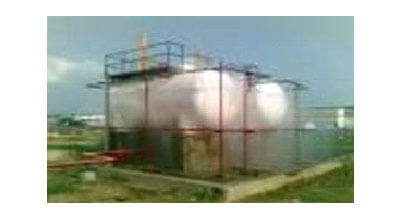

Medium Velocity Water Spray System

jayraj

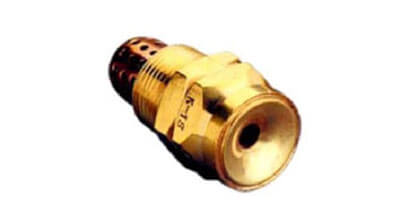

Open Spray Nozzle
High Velocity Water Spray System
High Velocity Water Spray System is installed to extinguish fires involving liquids with flash points of 650 C (1500 F) or higher. Three principles of extinguishment are employed in the system - emulsification, cooling and smothering. The result of applying these principles is to extinguish the fire within few seconds.
  • Transformers, Oil filled Equipments of Power Stations
  • Turbo-Alternators
  • Oil Field Boiler Rooms & Oil Quenching Tanks

System Components
  • Deluge Valve
  • Isolation Valve
  • Quartzoid Bulb Detectors
  • Projectors
jayraj

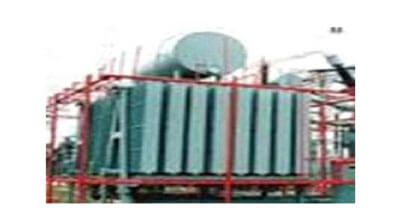

High Velocity Water Spray System

jayraj

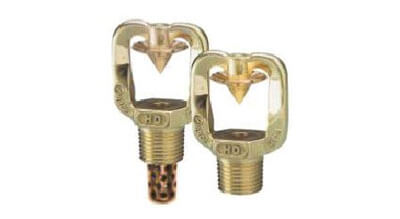

Projector

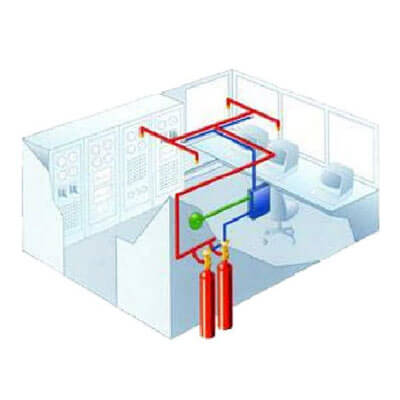

Gaseous Fire Suppression System
In Gaseous Fire Suppression System the inert gases and chemical agents are used to extinguish a fire.It is also known as Clean Agent Fire Suppression. The system typically consists of the agent, agent storage containers, agent release valves, fire detectors, fire detection system (wiring control panel, actuation signaling), agent delivery piping and agent dispersion nozzles.
jayraj

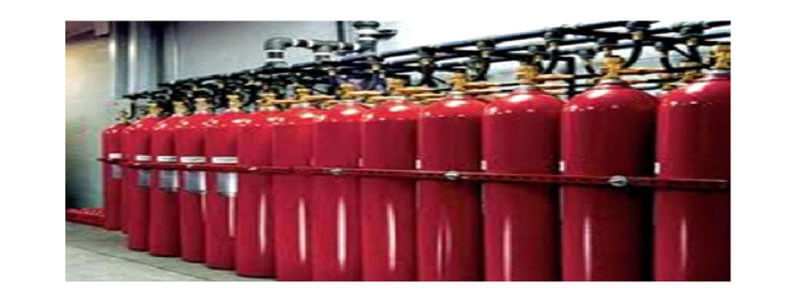

Gaseous Fire Suppression System
Types of Fire Suppression Agents
NOVEC
NOVEC is a fire suppression agent and it is liquid at room temperature but gasifies immediately after being discharged in a total flooding system.
FM 200
FM 200 is a fire suppression agent and leaves no residue on valuable equipment after discharge.
Argonite
Argonite is an inert gas, prepared by combining Argon and Nitrogen in specific proportions and is used in gaseous fire suppression systems.
Co2
CO2 is used in gas based fire suppression system, as a Clean Agent Gas.
jayraj
System Design Gaseous Fire Suppression System
High Sensitive Smoke Detection System
HSSD is very early warning fire detection system featuring the latest in Fire Alarm Aspiration Sensing Technology. This technology uses an advanced, intelligent smoke detector that ly draws air into its sensor through a pipe network. HSSD uses infra-red laser optical smoke detection with advanced algorithms to detect a wide range of fires while maintaining enhanced immunity to nuisance particulates and enabling to deliver highly accurate and discreet early warning fire detection for a wide variety of environments / applications.
jayraj

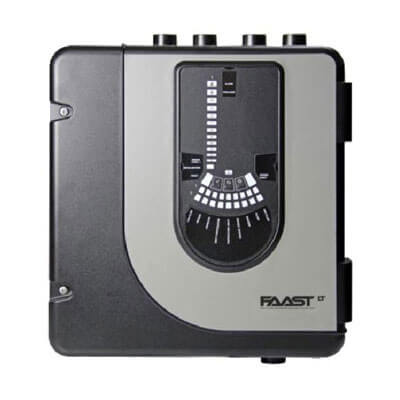

Faast Panel
jayraj

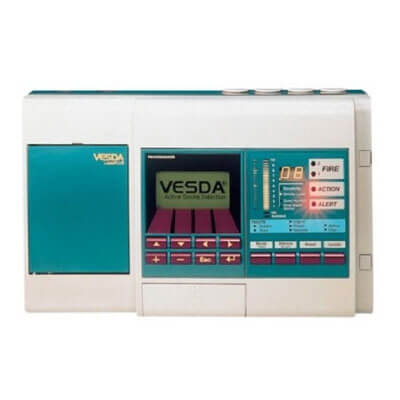

Vesda Panel
Features
  • Ensures optimum design of Xtralis VESDA / Honeywell FAAST aspirating smoke detection pipe networks, including branched networks
  • Accurately models pipe network designs to environmental performance criteria
  • Speeds the design process by automating adjustment of hole sizes
  • Allows different detector performance requirements within one building
  • Unique building constraints can be easily accommodated
  • Custom design elements can be documented to guide the installation team
  • 3D / 2D schematics to aid design and installation
  • Professional reports and materials lists can be generated to add to client submissions
  • Supports both metric and American measurement systems
  • Compatible with other Windows® – based applications
jayraj
System Diagram
Fire Rated Door
The emphasis on life safety and property protection has never been greater than it is today. Fire Rated Doors play a very important role in the fire resistance of a building; they allow people to evacuate safely from a building along with limiting the spread of fire and smoke to other areas. These doors are constructed with fire-rated core materials and designed to offer fire resistance for 2 Hours or more.
Features of Fire Rated Doors
  • Provides safe egress from a fire area during a fire
  • Inhibits the fire from spreading throughout the building
  • Protect life and property by reducing smoke hazards
  • Provides use as a regular door pathway at all times
  • Available as both Single & Double Leaf
  • Available in Steel, Wood & Glass Material to add beauty to ambience
  • Available with Panic Bar(s)
jayraj

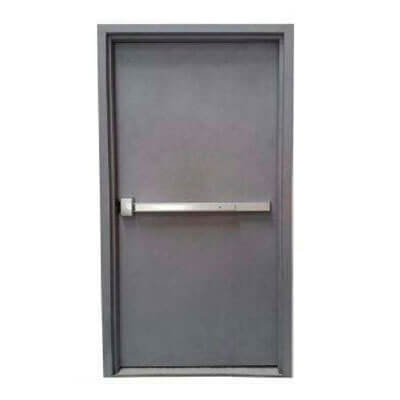

Fire - Rated Single Leaf Door with Panic Bar
jayraj

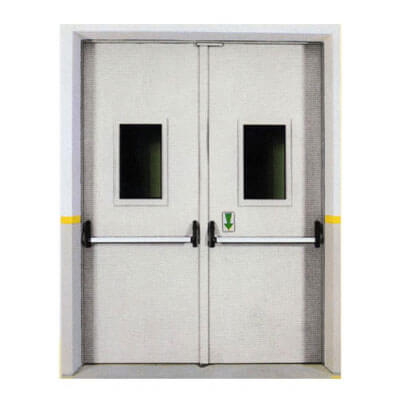

Fire - Rated Double Leaf Door with Panic Bar& Vision Panel
Fire Extinguishers
A Fire Extinguisher is a device used to extinguish or control small fires, often in emergency situations.It consists of a hand-held cylindrical pressure vessel containing an agent which can be discharged to extinguish a fire.
Types of Fire Extinguishers
ABC Type
In this Fire Extinguisher, ammonium phosphate dry chemical powder is stored under certain pressure. When the lever is pressed, it releases this powder with force. This can extinguish all classes of fire i.e. A,B,C and electrical fire.

Co2 Type
CO2 is a clean agent gas, which displaces Oxygen, thus it can cut off Oxygen supply in an area under fire and is suitable for B and C Classes of fire.

Clean Agent Type
This kind of Fire Extinguisher contain a clean agent gas which is clean, electrically nonconductive, environment friendly, extremely low in toxicity, and exceptionally effective.

DCP Type
The DCP Type Fire Extinguisher is recommened for Oil & Gas Industries and is effective on B and C classes of fire.

Mechanical Foam Type
Mechanical Foam Type of Fire Extinguishers contains a solution known as AFFF (Aqueous Film Forming Foam), used on A and B fires and for vapour suppression.
jayraj

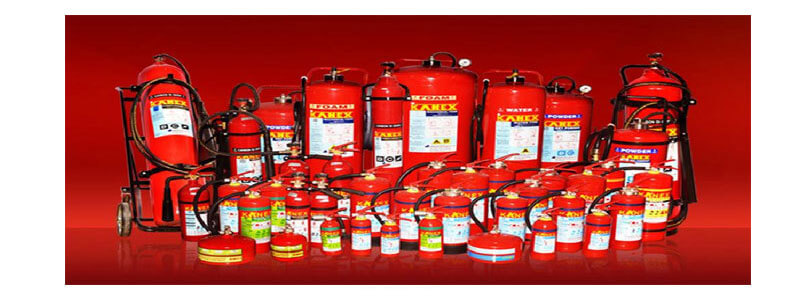

Fire Extinguishers
Access Control System
An Access Control System can restrict entrance of an unauthorized person into a property or a building. In addition, this system can also record the attendance of the employees.

Types of Access Control
Biometric System (Fingerprint)
The Biometric or Fingerprint Reader is placed at the entrances or exits of a building. This system allows only authorized entry of a person on the basis fingerprint match.
jayraj
Biometric Fingerprint
Card Based Access
The Proximity Card Reader also serves the same purpose like Biometric Fingerprint Reader. In this, Proximity Cards are used to access or enter a workplace.
jayraj
Card Based
Iris Verification Based
An Iris Reader compares person's iris pattern to prevent unauthorized entry in a secured area.
jayraj
Iris Based
Hand Verification Based
A Hand Reader verifies identity by the shape and size of the hand; contains complete door controller for entering and exiting; compatible with electromagnetic locks and electric strikes; used as a standalone application; for single opening applications; identification takes less than a second.
jayraj
Hand Based
Facial Verification Based
This Reader uses face verification method to recognize an authorized identity for an entry.
jayraj
Facial Based
Boom Barrier
Boom Barrier controls entry of vehicles in a Parking Area. It is also used by Toll Management.
jayraj
Boom Barrier
Turnstile
This is also a barrier to check authorized entry of a person in a public or private organization.
jayraj
Turntile

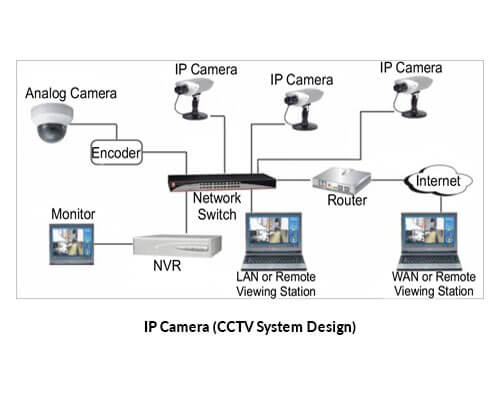

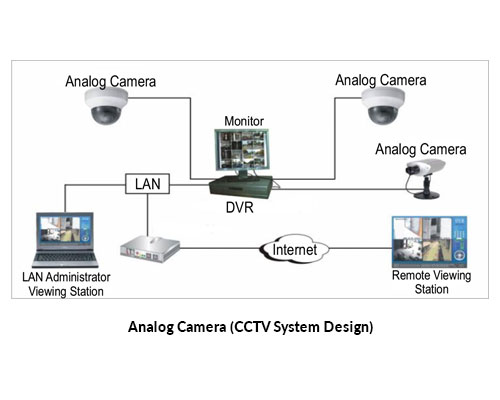

CCTV System
The CCTV System is used for surveillance in areas that may require day and night monitoring. Nowadays both commercial and residential spaces are using CCTV Camera for security purposes. The CCTV or Closed Circuit TV is used for surveillance in areas that requires monitoring. This system also provides recording directly, to the attached storing device. These cameras are IP compatible which capture, monitor and store video on IP systems through network connectivity. CCTV Cameras helps in detecting offender hence provides complete security to various organizations.

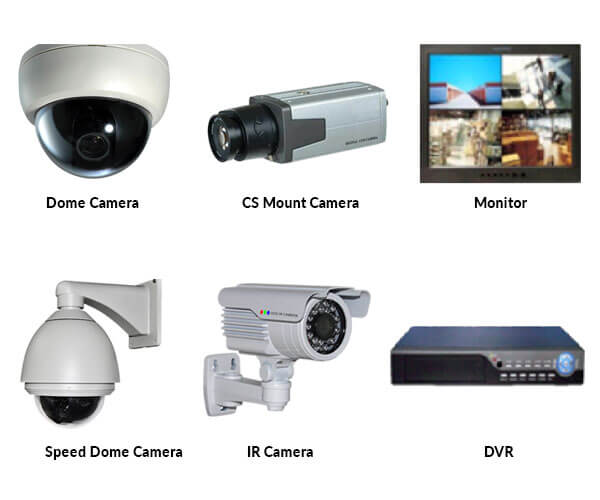

Components & Types of Camera
Components
  • Digital Video Recorder (DVR)
  • Network Video Recorder (NVR)
  • Cameras
  • Monitor / PC
  • Controller / Accessories

Types of Cameras
  • Speed Dome Camera
  • Inrfra Red Camera (IR)
  • CS Mount Camera
  • Dome Camera
  • IP Camera
  • HD Camera
  • Mega Pixel Camera
jayraj
jayraj
jayraj
Public Address & Voice Alarm System
A Public Address or "PA" System is an electronic amplification system with a Controller, Mixer, Amplifier, Router and Loudspeakers, used to reinforce a given sound and distributing the sound throughout a venue or a building. It is a centralized amplifier based system that is designed such, to provide voice paging and to broadcast alarm tone during emergencies.

The system can transmit alarm tone and routine voice messages, from a central location, to all or selected areas of the facility, in a reliable and safe manner, by the use of loudspeakers.

Simple PA systems are often used in small venues such as school auditoriums etc. PA systems with a larger number of speakers are widely used in institutional and commercial buildings, to read announcements or declare states of emergency.
jayraj

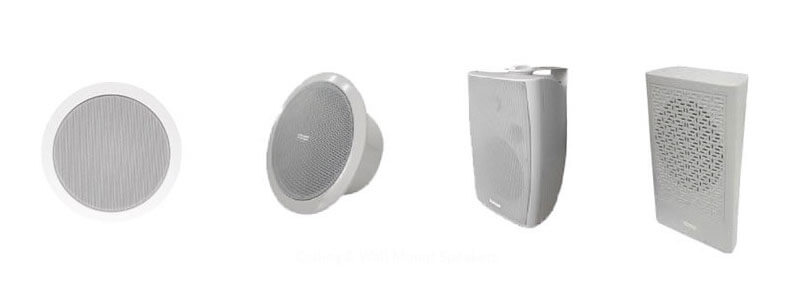

Ceiling & Wall Mount Speakers
jayraj

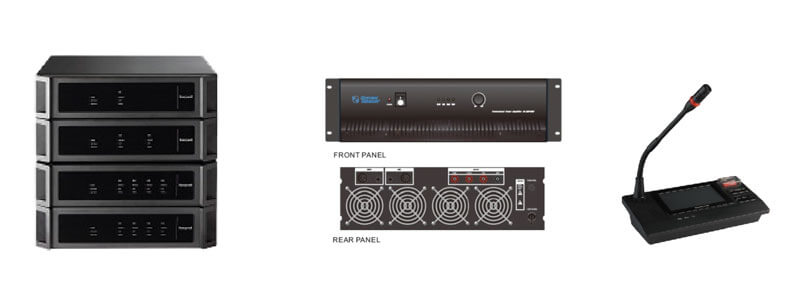

Amplifier & Paging Station
Integrated Building Management System (IBMS)
A Building Management System (BMS) is a computer-based control system installed in buildings that controls and monitors the building’s mechanical and electrical equipment such as ventilation, lighting, power systems, fire systems and security systems.
Functions of IBMS
  • Lighting Control System
  • Electric Power Control System
  • Heating/Cooling System
  • Ventilation System
  • Air-Conditionig System
  • Security & Observation System
  • Magnetic Card & Access System
  • Fire Alarm System
  • Elevators & Escalators
  • DG Set Control
  • Pump Set Control
  • Other Equipments

Types of Cameras
  • Speed Dome Camera
  • Inrfra Red Camera (IR)
  • CS Mount Camera
  • Dome Camera
  • IP Camera
  • HD Camera
  • Mega Pixel Camera
jayraj

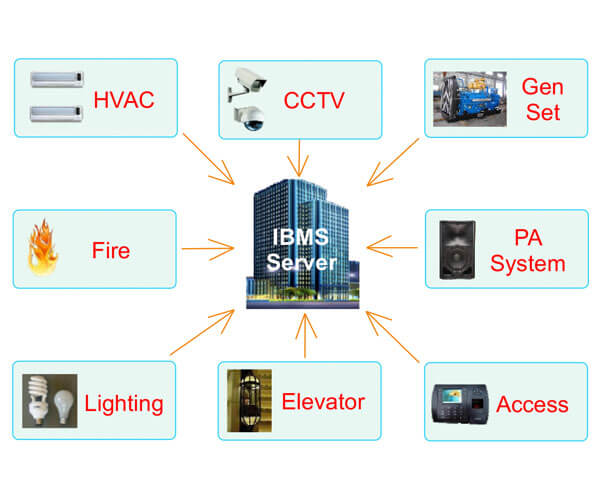

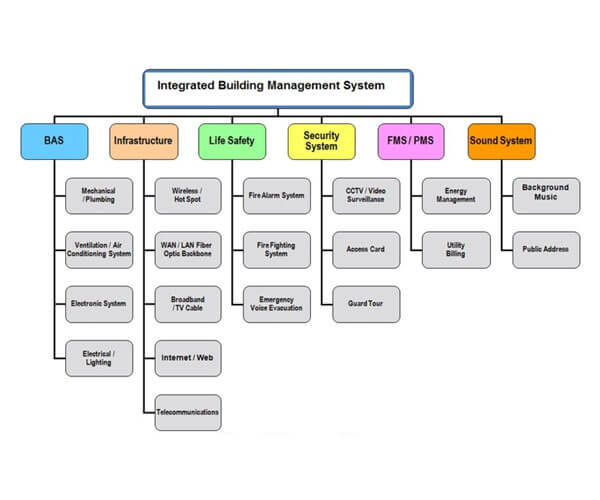

Intergrated Building Management System
jayraj

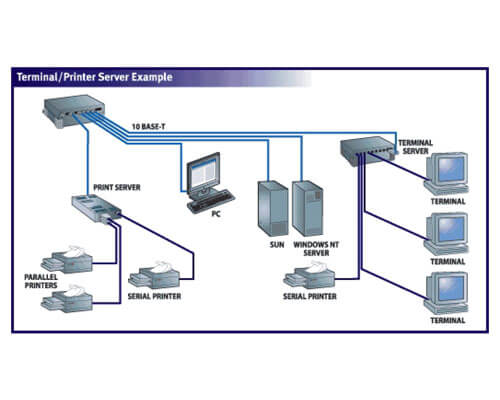

Networking System
Routers & Switches are used to connect computers, printers and servers within a building or campus. A switch serves as a controller, enabling networked devices to talk to each other efficiently. Through information sharing and resource allocation, switches save businesses money and increase employee productivity
jayraj
Networking

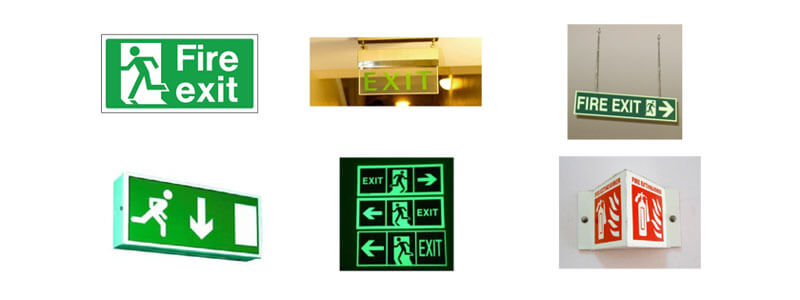

Signages
With consistent focus on current market, we are presenting a wide collection of Warning Sign board that is used to indicate a potential hazard which may result in minor or moderate injury.
jayraj

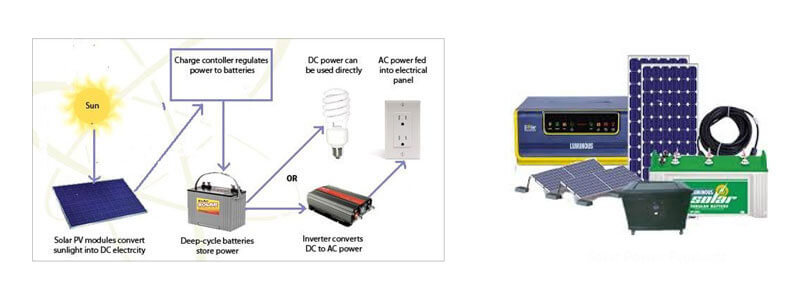

Solar Power Products
Solar Power System is that which converts energy from sunlight to electricity. A Solar Power System is a complex system consisting of Soalr Panels, UPS, Invertor, Batteries and Wiring.
There are mainly two types of Panels
  • Monocrystalline
  • Polycrystalline
jayraj
Solar Power Products

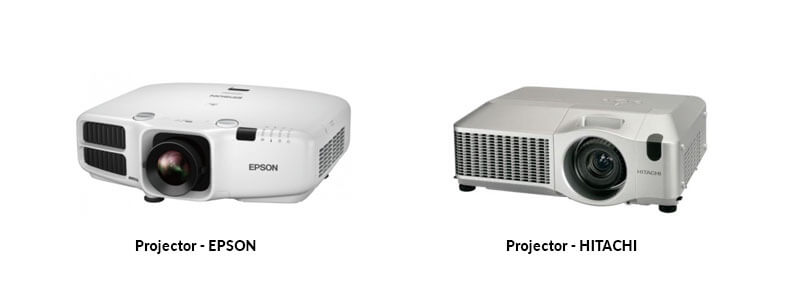

Projector
A projector or image projector is an optical device that projects an image (or moving images) onto a surface, commonly a projection screen.
Different Projectors include
  • Projectors with LED Bulb
  • Projectors with non-LED Bulb
jayraj

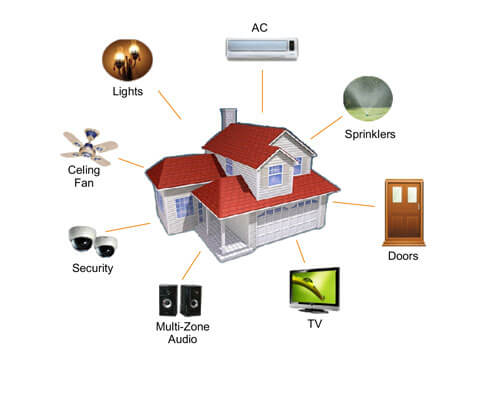

Home Automation System
Home automation includes centralized control of lighting, air conditioning, appliances and other systems, to provide improved convenience, comfort, energy efficiency and security. Home automation can also assist elderly and disabled persons as this system integrates electrical devices in a house with each other. The techniques employed in home automation includes the control of domestic activities, such as home entertainment systems, houseplant and yard watering, pet feeding, changing the ambiance for different events like dinners or parties.
jayraj
Home Automation System

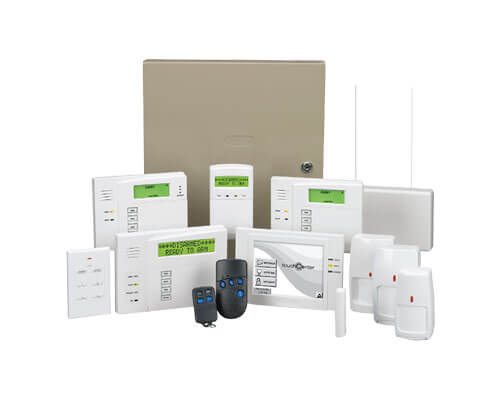

Intruder Alarm System
Intruder Alarms and Burglar Alarms prevent break in's into a home or a building. Burglar (or intrusion) alarms are electronic alarms designed to alert the user to a specific danger.This System consist of an array of sensors, a control panel and alerting system, and interconnections.
jayraj
Intruder Alarm System
Video Door Phone
A Video Door Phone enables viewing and communicating with the visitor through user interface deployed at home.
Application Areas
  • Raw Houses
  • Independent Villas
  • Appartments
  • Shops / Malls
  • Bunglows
jayraj

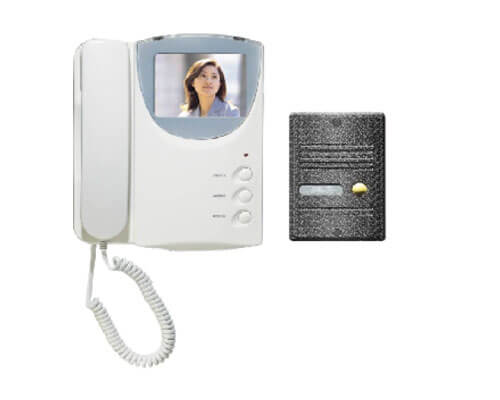

Video Door Phone

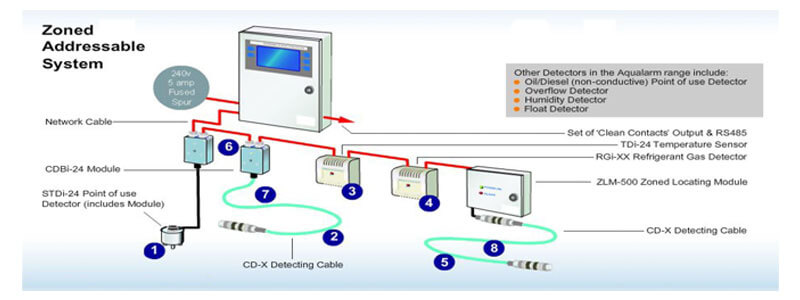

Water Leak Detection System
Water Leak Detectors are installed in areas where water leaks are at high risk. Sensor cables are laid along the area under false floor in server room / data centre. Zone alarm, fault & isolate functions are provided for optimum operation. Modbus connectivity enables remote monitoring of all the zones.
jayraj

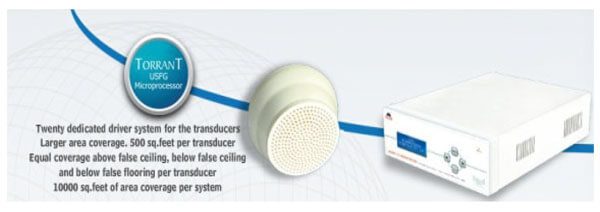

Rodent Repellent System
Rodent Repellers are electronic devices that emits ultrasound waves of high frequency which is painful for the rodents but is not audible by human ears. Thus these ultrasonic repellers force the rodents to leave the area but actually do not kill them.
Application Areas
  • Cold Storages
  • High Temprature Areas
  • Sensitive Areas
  • Data Centres
jayraj

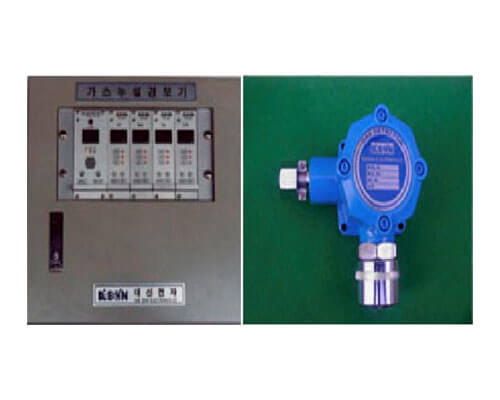

Industrial Gas Leak Detection
Gas Leak Detection Systems have been designed with an advanced electronic technology which is user friendly and has safe operation at low cost.The range of gases that can be detected are LPG, CNG, Acetylene and other Hydro Carbons, besides Hydrogen, Ammonia, Carbon Monoxide, Carbon Di Oxide, Solvent Vapours.
jayraj
Industrial Gas Leak Detection System
Digital Queue Management System
Queue Management System helps to organize waiting lines by providing visitors with an easy ordering method – based on “first in first out”, pre-scheduled appointments, or more sophisticated methods.

The system provides easy audio-visual means for directing customers, friendly user interface for agents to manage lines and call customers forward, and useful tools for managers to control the level of service and get performance stats.
jayraj
Digital Queue Management System
Retail Solutions
Barcode Scanner
The handheld laser bar code scanner provides great ease to scanning operation is very much useful in store inventory tracking, Pharmacy, inventory control, manufacturing, light assembly etc.
jayraj
Sensormatic System
Sensormatic EAS systems use one or more pedestals or antennas configured to create a surveillance zone at exits or checkout lanes. Pedestals can provide visible deterrence while concealed systems offer more discreet protection for upscale retail environments.
jayraj
X- Ray Baggage Scanner
The X-Ray Baggage Scanner is an ideal entry-level X-ray for security checkpoints providing airport standards screening of personal belongings for businesses, government buildings, courthouses, banks and other critical infrastructure applications.
jayraj
